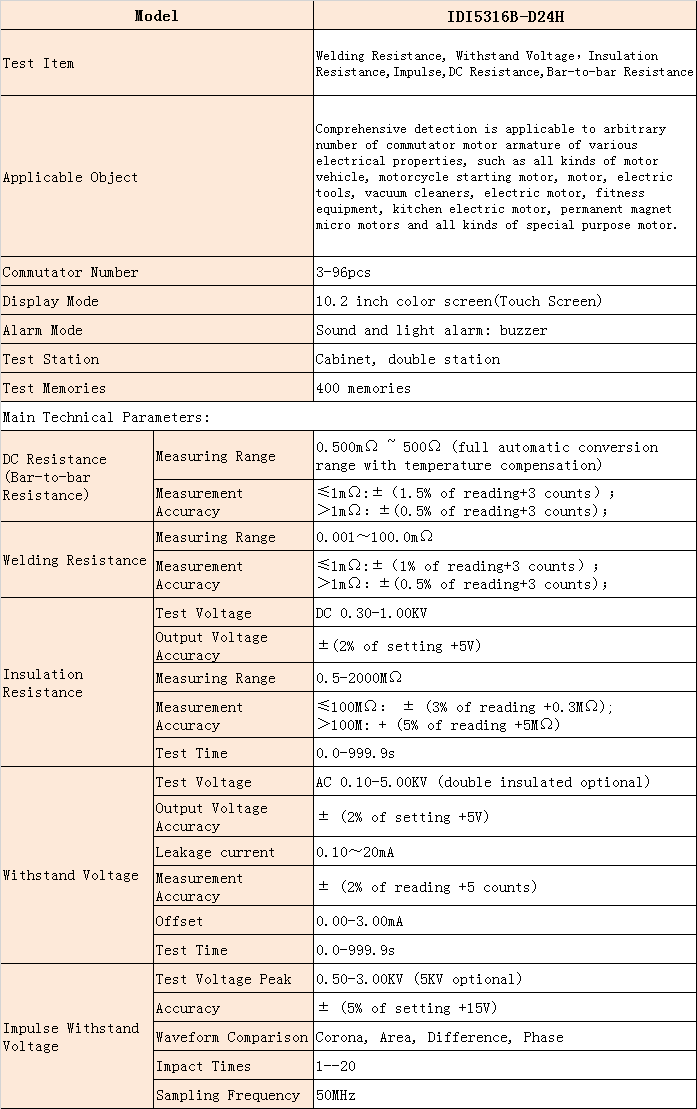

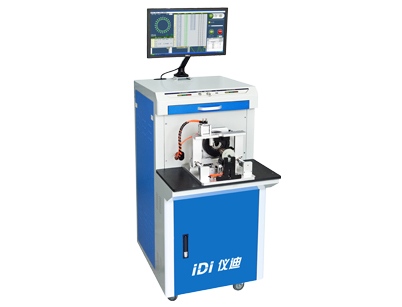

IDI5316 Series
Armature Rotor Tester
1、Test function: insulation resistance, AC withstand voltage, bar to bar resistance, welding resistance, interturn withstand
voltage all electrical performance test items are completed automatically at one time with ultra-high speed. The test of 12
armatures is about 3.5 seconds, and the test of 24 armatures is about 6 seconds;
2、Bar to bar resistance test function can automatically identify faults such as inter-chip short circuit, broken wire, over
limit resistance and provide fault point information;
3、If the armature is placed arbitrarily, the single / double winding process can be identified automatically and accurately,
and the corresponding bar to bar resistance difference can be automatically tracked, so as to analyze the small difference of
coil turns, enameled wire diameter and winding tension;
4、Automatic alarm for wrong direction of coil clockwise / anticlockwise hook;
5、Special inter turn withstand voltage test function of any bar to bar, repeated impact times, automatic and multi waveform
corresponding discrimination;
6、Automatic statistics of test products quantity and qualified rate, failure classification statistics of defective
products;
7、Convenient maintenance: modular design, easy to upgrade functions;
8、Model copy: support USB disk to quickly copy test conditions of each type of motor among multiple testers;
9、Record management: support USB disk, mass storage test records;
10、It can store data of 400 types of rotor, which is more convenient for production organization and management;
11、Equipped with test fixture. It is convenient and safe to operate. Number of output channels optional;
12、Double station test, save operation time and improve test efficiency;
13、10.2 inch LCD screen, intelligent analysis, sound and light alarm.
