Features of performance

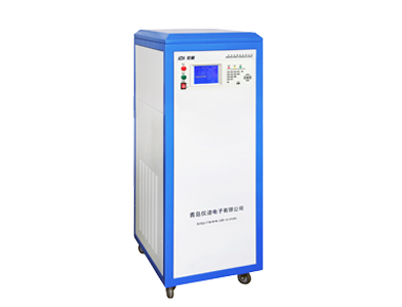

MN427X series mainly contains MN427X (single cabinet type, built-in isolation transformer), MN427XT (three-phase cabinet type, built-in isolation transformer ), MN427XP (single-phase cabinet type, built-in AC power supply), MN427XA (single-phase desktop type, no isolation transformer)
1.Comply with IEC,UL,EN,BS,JIS,VDE standard requirements;
2.High test precision: Basic precision of safety test is 1.5%, power test is 0.5%.
3.Fast test: The six tests can be done in 4.6 seconds to the fastest.
4.Fifty test memories, and each memory contains 8 test steps. Programming can be made between memories. Test can be taken in single step or continuously, available for test after second startup.
5.Test voltage can be controlled to ramp and descent (Time setting is adjustable), so as to meet different test demands.
6.Built-in or built-out power supply. Output voltage and frequency can be set as required to meet domestic and oversea test demands for LLT and Power test.
7.Circuit offset function.
8. Key indicators can be set with high and low limit. Intelligent analysis on failure test as well as audible and visual alarm can be provided.
9. Products for multiple power, which can automatically recognize the power gears;
10. Auto control:RS232/RS485,bar code scanner interface(optional),switch control interface, easily forming automation system.
11. Suitable for home appliances, lamps, electric tools, medical equipment, information equipment, electric vehicles and other test, meet the testing requirements of different industries.
12.320*240 dot matrix LCD provides intelligent analysis and audible and visible alarm.
13. English Menu and cursor prompt help user understand easily. Numeric keyboard makes setting more convenient.
